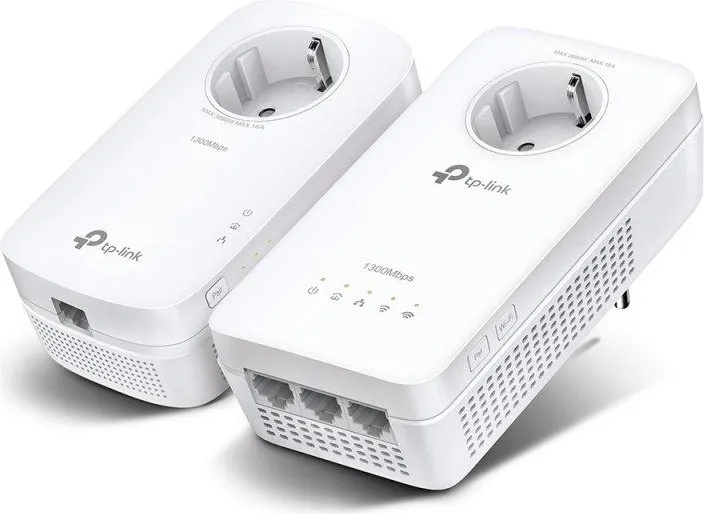

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit

• HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps *


• AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz *


• OneMesh TM  - Works with your OneMesh TM   router to form a unified mesh network for seamless streaming while moving around your home


• 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability


• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network


• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices


• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes


• Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket


• 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles











Specifications:

HARDWARE FEATURES

Plug Type
EU

Standards and Protocols
HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)

Interface
3 Gigabit Ethernet Ports, 1 Power Socket

Button
Pair, LED On/Off, Wi-Fi, Reset

Power Consumption
TL-WPA8631P: Maximum: 13.7W, Typical: 11W

TL-PA8010P: Maximum: 4.9W, Typical: 4.6W

LED Indicator
Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)

Dimensions ( W x D x H )
TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)

TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)

Range
Up to 300 meters/1000 feet over existing electrical wiring*

Compatibility
Compatible with all HomePlug AV & HomePlug AV2 standard

powerline adapters*

Transmission Speeds
Powerline: up to 1300 Mbps

Ethernet: 10/100/1000 Mbps

SOFTWARE FEATURES

Security
Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,

Powerline: 128-bit AES Encryption

Management
TP-Link tpPLC App, or download new tpPLC Utility on PCs: www. tp-link. com/support/download

Modulation Technology
OFDM

OTHERS

Certification
CE, RoHS

Package Contents
AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:

1× TL-WPA8631P, 1× TL-PA8010P;

2× Ethernet Cables;

1× Quick Installation Guide

System Requirements
System Requirements:

Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux

System Requirements for tpPLC Utility:

Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% non-condensing



Продукт известен още и като TL WPA 8631 P KIT, TLWPA8631PKIT, TL WPA8631P KIT, TL-WPA8631PKIT
